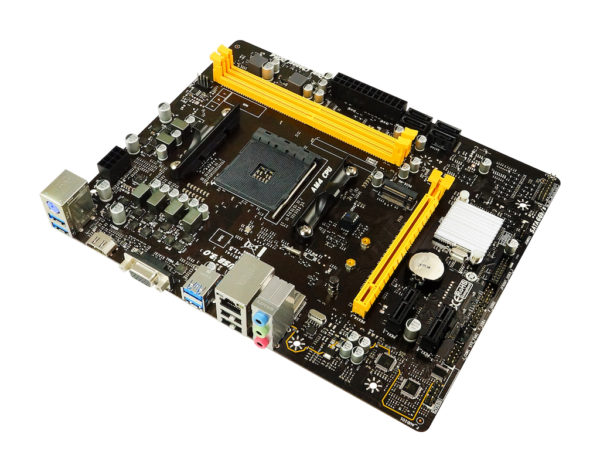

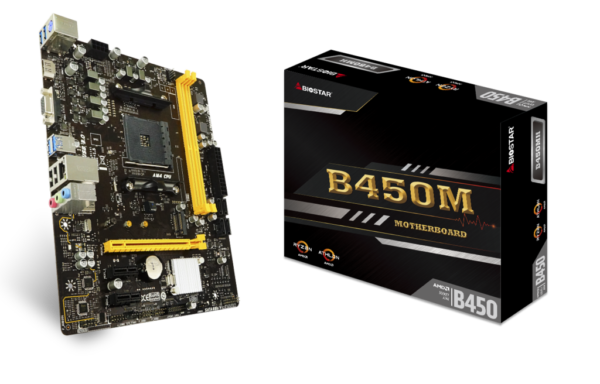

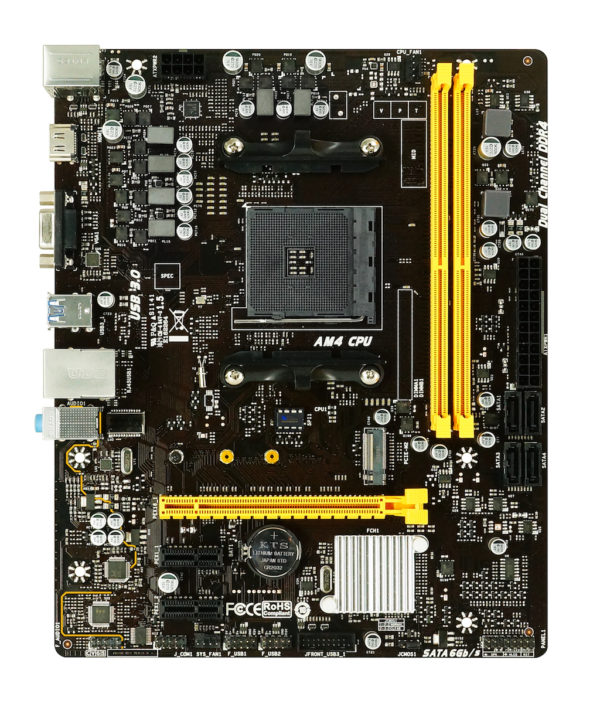

BIOSTAR B450MH

Limpiar
$75.990 62.990
SKU: BIOS-B450M
Categoría:

ESPECIFICACIONES TÉCNICAS

CHIPSET AMD B450
CPU SUPPORT Supports AMD AM4 Socket for 3rd, 2nd and 1st Gen Ryzen/2nd and 1st Gen Ryzen with Radeon Vega
Graphics/Athlon with Radeon Vega Graphics Processors
MEMORY Support Dual Channel DDR4 1866/ 2133/ 2400/ 2667/ 2933/ 3200(OC) MHz
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory
Each DIMM supports non-ECC 8/16 GB DDR4 module
INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
STORAGE 4 x SATA III Connectors (6Gb/s) :
– Supports AHCI & RAID 0, 1, 10
1 x M.2 (M Key) 32Gb/s Connector:
– Supports PCIe (32Gb/s) & SATA III (6Gb/s) SSD (Ryzen series – Summit Ridge / Pinnacle Ridge / Raven Ridge)
– Supports SATA III (6Gb/s) SSD (A-series APU – Bristol Ridge)
LAN Realtek RTL8111H – 10/100/1000Mb/s Controller
Support Super LAN Surge Protection
AUDIO CODEC ALC887
7.1 Channels, High Definition Audio
USB 6 x USB 3.2 Gen1 ports (4 on rear I/Os and 2 via internal headers)
6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)
EXPANSION SLOT 2 x PCIe 2.0 x1 Slots
1 x PCIe 3.0 x16 Slot (When using APU, the bandwidth is x8 speed)

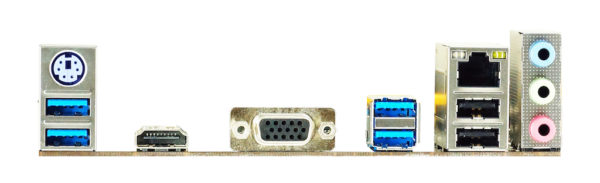

REAR I/O 1 x PS/2 Keyboard/Mouse
4 x USB 3.2 Gen1 (5Gb/s) Ports
2 x USB 2.0 Ports
1 x HDMI Port
1 x VGA Port
1 x LAN Port
3 x Audio Jacks
INTERNAL I/O 1 x USB 3.2 Gen1 Header(5Gb/s) (each header supports 2 USB 3.2 Gen1 ports)
1 x USB 3.2 Gen1 Header(each header supports 2 USB 3.2 Gen1 ports)
2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
4 x SATA III Connectors (6Gb/s)
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Connector
1 x System Fan Connector
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x Clear CMOS Header
1 x COM Port Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring
DIMENSION Micro ATX Form Factor Dimension: 19.8cm x 24.4cm ( W x L )
OS SUPPORT Supports Windows 10(64bit) / 11(64bit)
Windows 7(64bit) for Bristol Ridge/ Summit Ridge/ Pinnacle Ridge only7(64bit) / 10(64bit)
BUNDLE SOFTWARE BullGuard
Smart Speed LAN
ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide

Información adicional

Peso N/D
