| CHIPSET | Intel H410 | |
| CPU SOPORTE | Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package |
|
| MEMORIA | Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2800/ 2933 2 x DDR4 DIMM Memory Slots, Max. Supports up to 64 GB Memory Each DIMM supports non-ECC 4/8/16/32GB DDR4 module |
|
| VIDEO INTEGRADO | By CPU model Supports DX12 Supports HDCP |
|
| ALMACENAMIENTO | Total supports 1 x M.2 slots and 4 x SATA III(6Gb/s) ports 1 x PCIe-M2 socket , with M key, type 2242/2260/2280 storage devices support SATA & PCIE 3.0 x 2 mode 4 x SATA III (6Gb/s) |
|
| LAN | RTL8111H 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability |
|
| AUDIO CODEC | ALC887 7.1 Channels, High Definition Audio |
|
| USB | 4 x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal headers) 6 x USB 2.0 ports (4 on rear I/Os and 2 via internal headers) |
|
| EXPANSION SLOT | 2 x PCIe 3.0 x 1 Slots 1 x PCIe 3.0 x 16 Slot |
|

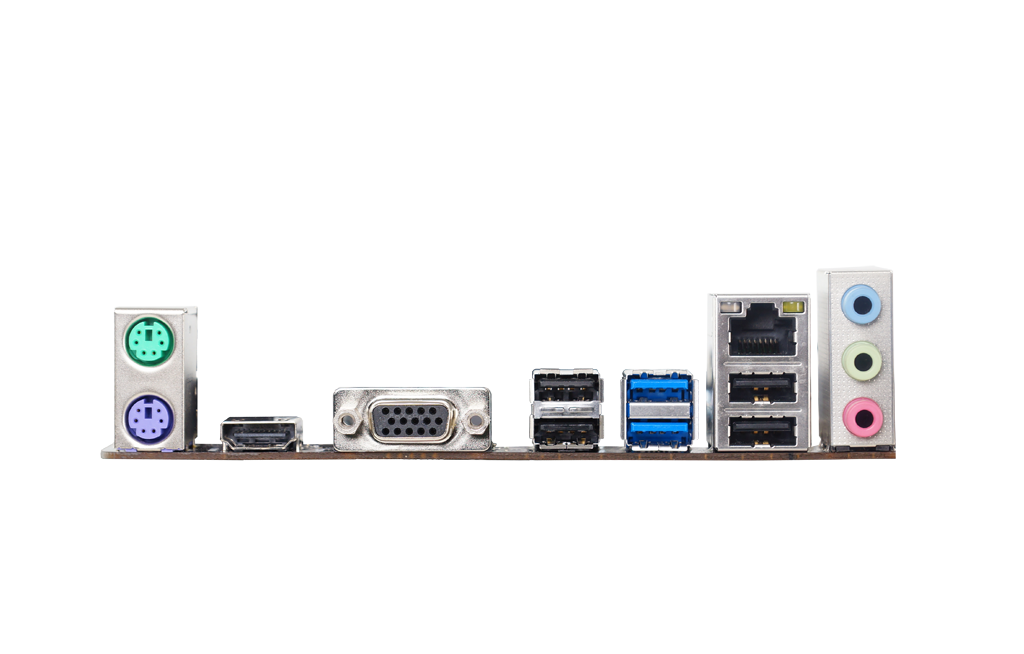

| REAR I/O | 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x HDMI Port 1 x VGA Port 2 x USB 3.2 (Gen1) Ports 4 x USB 2.0 Ports 1 x LAN port 3 x Audio Jack |
|
| INTERNAL I/O | 4 x SATA III Connectors (6Gb/s) 1 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Clear CMOS Header 1 x COM Port Header |
|
| H/W MONITOR | CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control CPU/DDR Voltage Monitoring |
|
| DIMENSION | Micro ATX Form Factor Dimension: 17.9cm x 22.6cm ( W x L ) | |
| SO | Supports Windows 10 (64bit) / 11(64bit) | |
| ACCESORIOS | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide |
